Land Rover Defender 1994-2016 OEM Front Radius Arm Flange Bolt Kit with Chassis Washers
Code: SK10-W-FL
£35.00
( Excl VAT VAT £29.17)
Triple 4 OEM front radius arm (hockey stick) flange bolt Kit to fit all Land Rover Defender 90, 110 & 130 models from 1994 to 2016. (from chassis number LA930456 to the end of production)

Attention to detail is at the heart of everything we do and our bolt kits are no exception.

This kit uses superior Grade 10.9 high tensile flange bolts with all metal Grade 10 locking nuts for the axle bolts and Grade 10 nyloc nuts for the chassis end. Metal locking flange nuts are far better at withstanding harsh vibration and heat than nyloc nuts found in our standard suspension bolt kits, and the integral flanges on both the bolts and nuts offer a more even clamping force than a standard bolt and nut combination.

The nuts used in this kit are of the shallower type which gives you much better access to get a spanner or socket on the nut head, in the tight confines of space around the radius arms, diff and anti roll bar links.

All Triple 4 bolt kits are made to OEM standards and come with the correct grade of high tensile bolts and nuts for each application. All our bolt kits meet the relevant IS0, DIN and BS standards.

What's in the kit?

  • 4x Triple 4 OEM Grade 10.9 High Tensile Flange Bolts. (Axle End).
  • 4x Triple 4 OEM Grade 10 All Metal Flange Locking Nuts for the above.

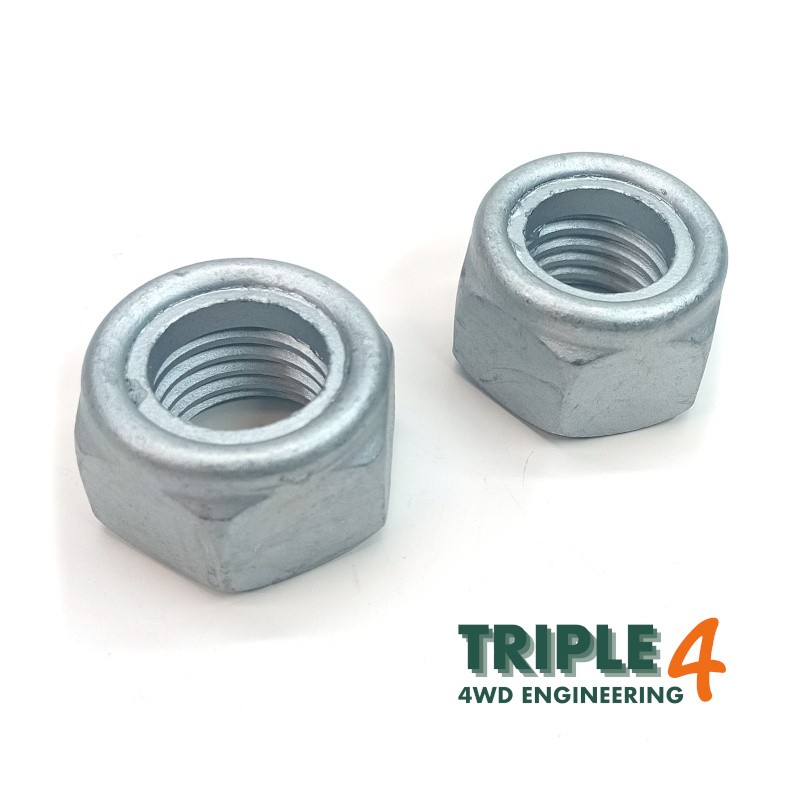

  • 2x Triple 4 OEM Grade 10 Nyloc Nuts (Chassis End).

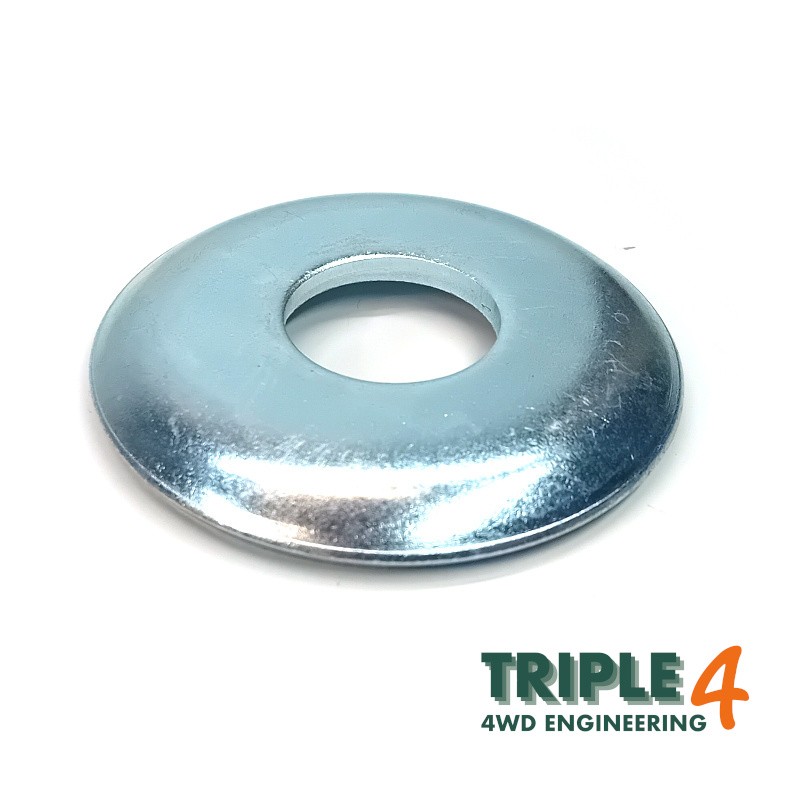

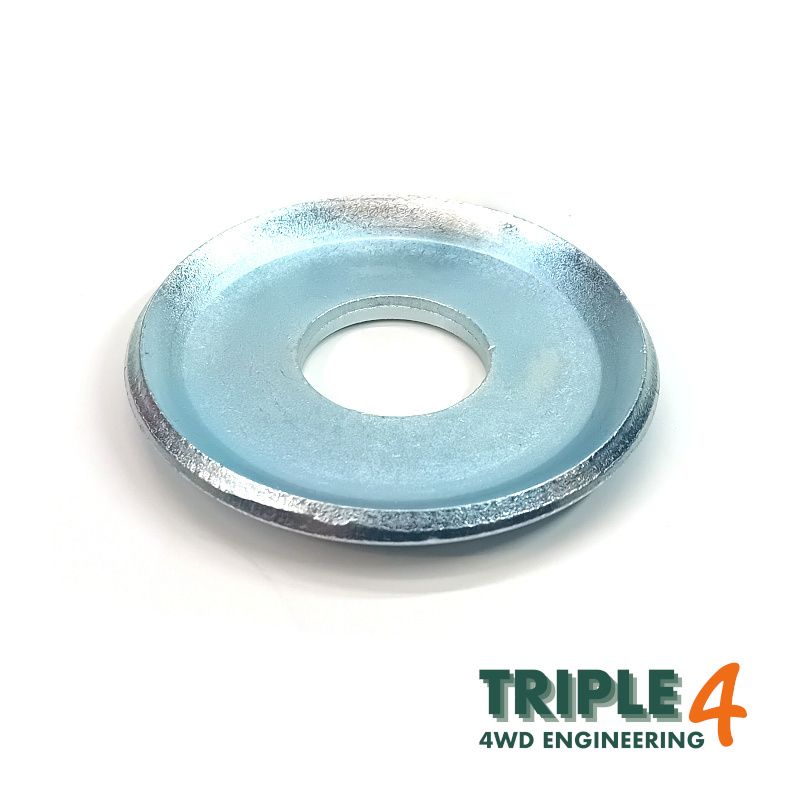

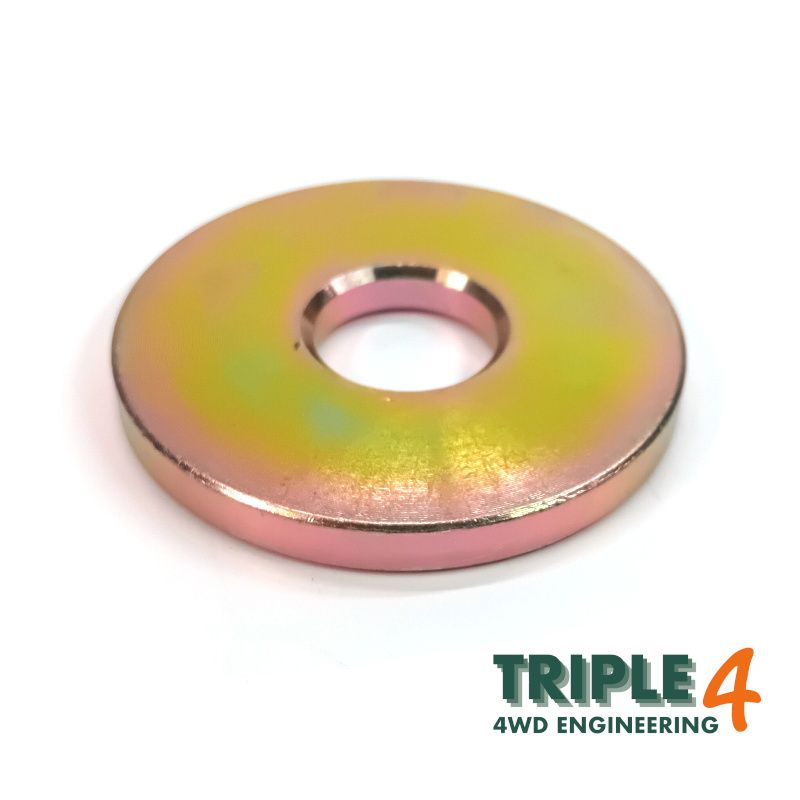

  • 4x Triple 4 OEM Chassis Bush Retaining Washers.
This kit fits all Defender 90, 110 & 130 models from 1994 onwards, 300TDi, TD5, V8 Petrol, 2.4 TDCi Puma, 2.2 TDCi Puma.

Related part numbers NRC4516 / RYF500270 / NRC4515 / ANR3140 / RYG501550
Triple 4 OEM front radius arm (hockey stick) flange bolt Kit to fit all Land Rover Defender 90, 110 & 130 models from 1994 to 2016. (from chassis number LA930456 to the end of production)

Attention to detail is at the heart of everything we do and our bolt kits are no exception.

This kit uses superior Grade 10.9 high tensile flange bolts with all metal Grade 10 locking nuts for the axle bolts and Grade 10 nyloc nuts for the chassis end. Metal locking flange nuts are far better at withstanding harsh vibration and heat than nyloc nuts found in our standard suspension bolt kits, and the integral flanges on both the bolts and nuts offer a more even clamping force than a standard bolt and nut combination.

The nuts used in this kit are of the shallower type which gives you much better access to get a spanner or socket on the nut head, in the tight confines of space around the radius arms, diff and anti roll bar links.

All Triple 4 bolt kits are made to OEM standards and come with the correct grade of high tensile bolts and nuts for each application. All our bolt kits meet the relevant IS0, DIN and BS standards.

What's in the kit?

  • 4x Triple 4 OEM Grade 10.9 High Tensile Flange Bolts. (Axle End).
  • 4x Triple 4 OEM Grade 10 All Metal Flange Locking Nuts for the above.
  • 2x Triple 4 OEM Grade 10 Nyloc Nuts (Chassis End).
  • 4x Triple 4 OEM Chassis Bush Retaining Washers.
This kit fits all Defender 90, 110 & 130 models from 1994 onwards, 300TDi, TD5, V8 Petrol, 2.4 TDCi Puma, 2.2 TDCi Puma.

Related part numbers NRC4516 / RYF500270 / NRC4515 / ANR3140 / RYG501550
